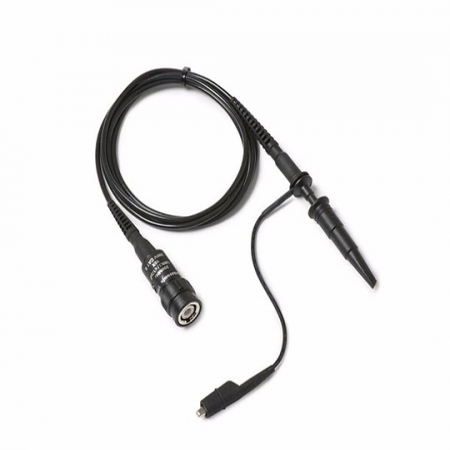

无源探头
无源探头为大多数示波器发货时的标配，提供低成本的通用探测解决方案。通常，这些探头缺乏有源电压探头的性能，但能够在大量应用中提供信号可视化所需的坚固性和动态范围。泰克推出全新的无源探头类型，重新定义了无源探头产品类别的性能。
-
| 型号 | 衰减 | 带宽 | 输入阻抗 | 最大电压 | 价格 |
| TPP0051 | 10x | 50 MHz | 10 MΩ || 12 pF | 300 Vrms CAT II | ￥48,011 |
| TPP0100 | 10X | 100 MHz | 10 MΩ || 12 pF | 300 Vrms CAT II | ￥53,102 |
| TPP0101 | 10X | 100 MHz | 10 MΩ || 12 pF | 300 Vrms CAT II | ￥58,258 |
| TPP0200 | 10X | 200 MHz | 10 MΩ || 12 pF | 300 Vrms CAT II | ￥14,565 |
| TPP0201 | 10X | 200 MHz | 10 MΩ || 12 pF | 300 Vrms CAT II | ￥31,772 |
| P2220 | 1X / 10X | 10X：200 MHz 1X：6 MHz | 10X：10 MΩ || 110 pF 1X：1 MΩ || 17 pF | 10X：300 Vrms CAT II 1X：150 Vrms CAT II | ￥35,702 |
| P2221 | 1X / 10X | 10X：200 MHz 1X：6 MHz | 10X：10 MΩ || 110 pF 1X：1 MΩ || 17 pF | 10X：300 Vrms CAT II 1X：150 Vrms CAT II | ￥39,763 |
| P6101B | 1X | 15 MHz | 1 MΩ || 100 pF | 300 Vrms CAT II | ￥41,116 |
| P3010 | 10X | 100 MHz | 10 MΩ || 13 pF | 300 Vrms CAT II | ￥41,116 |
| TPP0250 | 10X | 250 MHz | 10 MΩ || 3.9 pF | 300 Vrms CAT II | ￥44,080 |
| P6139B | 10X | 500 MHz | 10 MΩ || 8 pF | 300 Vrms CAT II | ￥3,445 |
| P5050B | 10X | 500 MHz | 10 MΩ || 11 pF | 300 Vrms CAT II | ￥3,370 |
| TPP0500B | 10X | 500 MHz | 10 MΩ || 3.9 pF | 300 Vrms CAT II | ￥4,279 |
| TPP0502 | 2X | 500 MHz | 2 MΩ || 12.7 pF | 300 Vrms CAT II | ￥4,692 |
| TPP1000 | 10X | 1 GHz | 10 MΩ || 3.9 pF | 300 Vrms CAT II | ￥7,218 |
